• Automatic & hand operation, easy operation, economy.
• 1. With POU YUAN TECHNOLOGY controller, easy operation easy learning.
• 2. Automatic & hand operation for both using:
  • (1) For 2D/3D milling in automatic operation.
  • (2) Keep handle design of XYW-axes for simple milling in manual operation.
• 3. XYW axes with AC servo Motor, hand operation with digital readout effect.
• 4. Spindle speed to 3600rpm with high- low speed change design, offer best choice of milling speed.

1. Controller POU YUEN 2. Spindle inverter moter & inverter 3. 3-axes AC servo motor 4. XYZ-axes C5 ball screw 5. XY-axes with Turcite B 6. Z-axis brake motor 7. Auto. lubrication system 8. Coolant system 9. Air draw bar 10. Rear rubber dust guard 11. Metal front cover 12. Splash guard 13. Semi enclosed splash guard

14. Electric box & panel 15. RS-232 interface shannel 16. Alarm lamp 17. Electron hand wheel 18. Halogen light 19. Tools & tool box 20. Operational manual

• 1. Controller: FANUC
• 2. Semi table guard
• 3. Transformer

Unit: mm / inch

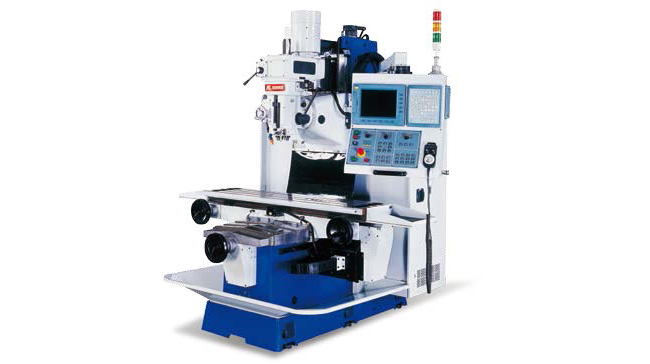

Item / Model		CNC-1050
Spindle driving type		Inverter Vari
Table	Table size	1520 x 430 (59.84" x 16.93")
	T-slots (No. x Width x Pitch)	3 x 16 x 80P
	Table to column	80 ~ 550 (3.15" ~ 21.65")
Capacity	XYZ-axis travel	1050 x 500 x 500 ( 41.34"x19.69"x 19.69")
	Quill travel	140 (5.51")
Spindle	Spindle taper	NT-40
	Spindle speed	3600 rpm
	Quill diameter	110  (4.33")
	Spindle nose to table	70 ~ 670 (2.76"~26.38")
	Spindle center to column	515 (20.28")
Motor	Spindle Motor	7.5 kw  (5HP)
	XY-axes motor	0.85 kw
	Z-axis motor	0.6375 kw (0.85HP)
	Coolant Motor	1/8 HP
Measurement	Machine size	2230 x 2000 x 2200 ( 88"x 79"x 87")
	Packing size	2500 x 2100 x 2500 ( 95"x83"x100")
	N.W. / G.W. (approx)	3200 / 3400 kgs
	Standard Color RAL-7035 light gray + RAL-5015 blue

* We reserve the right to modify & improve our products without notice.
